1 - Combi Plus Introduction

Rich Electric - CombiPlus - multi function Chargers & inverter

Tuesday, 30 Mar 2010 at 20:30 GMT, by SiteAdmin

The Ultimate Interactive DC to AC Inverter/Charger Power Management Control System idealy designed for Home, Boat, Caravan or RV.

Features includes

  • Combi-functional, intelligent Mains Grid Power and Generator power management control
  • ATS Uninterrupted AC power Auto transfer switch (UPS function), enable uninterrupted AC power
  • Two and Three phase AC output capability, for more demanding loads
  • Power support feature: boosting the capacity of shore or generator power
  • Power Shifting feature: avoids sudden loads on generator causing voltage spikes, an innovative feature of the Combi Range
  • Four Stage Adaptive Charging System with dual bank battery charging, up to 120Amps & 4Amps starter battery
  • LCD Display for parameter setting and error messages
  • Programmable Auxiliary relay contacts (x3)
  • Programmable input current limit for power share
  • Communication with max. 10 sets of solar chargers (SunStar Series)
  • Solar Charging Capacity up to a massive 600 Amps
  • Four preset control mode application with AC grid, AC charging and solar charging
  • Optional Remote Control panel Replica of main control panel with LCD display for eas operation in distance
  • Power Stack capability: if need more power, just keep stacking for increased power upgrade
  • Green power Smart: This feature is designed to conserve energy when connected to the main grid supply or AC generator
  • Powerful Interactive Bi-Directional True Pure Sine Wave Inverter/Charger

The Combi-Plus Controller is a perfect all in one solution designed to regulate PV/generator input into AC power, and it is a battery charger for DC/AC inverter function.

General

  • Multi-functional Feature
    The “CombiPlus” is a powerful true sine wave inverter, a sophisticated battery charger that
    features adaptive charge technology and a high-speed AC Auto Transfer Switch (ATS) in a
    single compact enclosure. Besides these primary functions, however, the CombiPlus has
    several advanced features that provide a range of new applications as outlined below:
  • Uninterrupted AC Power
  • In the event of a grid failure, or shore or generator power being disconnected, the inverter
    within the CombiPlus is automatically activated and takes over supply to the connected loads.
    This happens so fast (less than 10 milliseconds) that computers and other electronic
    equipment will continue to operate without disruption.
  • Parallel Operation
    Virtually unlimited power thanks to parallel operation up to 5 units can operate in parallel to
    achieve higher power output. Five CP-3000-242 units, for example, provide 15kW of output
    power with 350A charging capacity.
  • Three Phase Capability
    In addition to parallel connection, three units of the same model can be configured for
    three-phase output. But that’s not all: up to five sets of three units can be parallel connected for
    a huge 45kW inverter and 1050A charger!
  • Power Control-Dealing with limited generator or shore side power
    The “CombiPlus” is a very powerful battery charger. It will therefore draw a lot of current
    from the generator or shore side power. A maximum generator or shore current can be set
    (B2-05). The “CombiPlus” will then take account of other AC loads and use whatever is
    extra for charging thus preventing the generator or shore supply from overload.
  • Power Assist-Boosting the capacity of shore or generator power
    This feature takes the principle of Power Control to a farther dimension allowing the
    “CombiPlus” to supplement the capacity of the alternative source. Where peak power is so
    often required only for a limited period; it is possible to reduce the size of generator needed
    or conversely enable more to be achieved from typically limited shore connection. When the
    load reduces, the spare power is used to recharge the battery.

Battery Charger

  • Adaptive 4-stage charge characteristic: Bulk-Absorption-Float-Equalize
    The “CombiPlus” features a microprocessor controlled “adaptive” battery management
    system that can be preset to suit different types of batteries. The “adaptive” feature will
    automatically optimize the process relative to the way the battery is being used.
  • The right amount of charge: Variable Absorption Time
    When only shallow discharges occur (a yacht connected to shore power for example), the
    absorption time is kept in order to prevent overcharging of the battery. After a deep discharge,
    the absorption time is automatically increased to make sure that the battery is completely
    recharged.
  • Preventing damage due to excessive gassing: The Battery Safe Mode
    If, in order to quickly charge a battery, a high charge current in combination with a high
    absorption voltage has been chosen. The “CombiPlus” will prevent damage due to excessive
    gassing by automatically limiting the rate of voltage increase once the gassing voltage has
    been reached.
  • Less maintenance and aging when the battery is not use: The Equalize Mode
    The equalize mode kicks in whenever the battery has not been subjected to discharge during
    24 hours. In the equalize mode, float voltage is reduced to 2.2V/cell (13.2V for 12V battery)
    to minimize gassing and corrosion of the positive plate. One a week, the voltage is raised
    back to absorption level to “equalize” the battery. This feature prevents stratification of the
    electrolyte and sulphation, a major cause of early battery failure.
  • 2 outputs to charge 2 battery banks
    The “CombiPlus” features 2 outputs, of which 1 can carry the full output current. The second
    output, limited to approximately 4A and with a slightly lower output voltage, is intended to
    top up a starter battery.
  • To increase battery life: Temperature Compensation
    Every “CombiPlus” can come with an optional battery temperature sensor (BTS-3) when
    connected, charge voltage will automatically decrease with increasing battery temperature.
    This feature is especially recommended for sealed batteries and/or when important
    fluctuation of battery temperature is expected.

Combi-Plus

| Posted by SiteAdmin | Categories: General |




2 - CombiPlus Infrastructure



Tuesday, 30 Mar 2010 at 20:30 GMT, by SiteAdmin

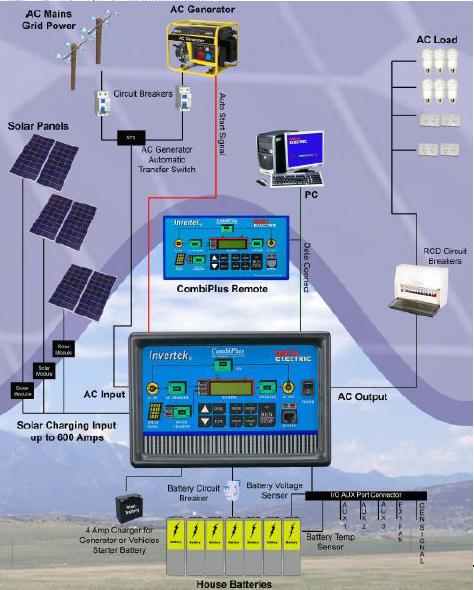

Combi-Plus Infrastructure






3 - CombiPlus Specification

Tuesday, 30 Mar 2010 at 20:30 GMT, by SiteAdmin

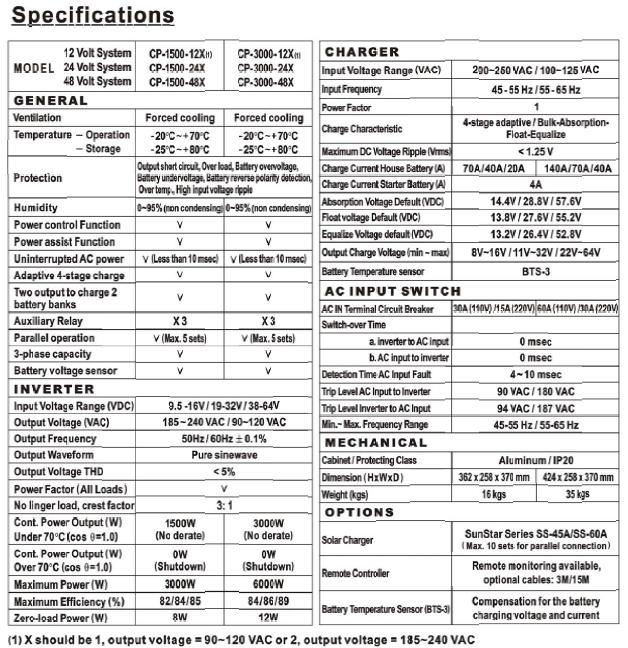

Combi-Plus Specification
