Solar Series
1 - Grid Tie Connection Types
SMA - Sunny Boy Inverters
Monday, 20 July 2009 at 20:30 GMT, by SiteAdmin
SMA brought "string" inverters to the USA, and now have a full line of inverters for almost any grid-tie application. They feature German engineering and excellent pricing. Read more »
| Posted by SiteAdmin | Categories: General |
About SMA
Links to official Site
Xantrex - GT series Inverters
Monday, 20 July 2009 at 20:30 GMT, by SiteAdmin
Inverters convert DC into AC. For solar applications, inverters may be divided into two categories: solar-direct, or battery-based. Xantrex makes both types of inverters. Most battery-based inverters are designed to work with a battery bank of a specific nominal voltage - 12V, 24V,or 48V. Larger models often include a battery charging function where the inverter essentially works in reverse to charge the batteries using AC electricity such as that of a generator or the electric grid - these models may be referred to as "inverter-chargers". This is what we normally recommend for off-grid systems and grid-tie system where back-up power is desired. "Solar-direct" inverters are designed for connecting to the electric grid, and do not require batteries at all. these usually operate at much higher DC voltages, and are the most efficient way to convert solar power to usable AC power. In order to be UL listed and approved for grid-connection, the solar-direct type of inverter must shut down in the event of grid (utility) failure. In contrast, battery-based inverters are able to run independently under all circumstances.
Read more »
| Posted by SiteAdmin | Categories: General |
About Xantrex
Links to official Site
2 - Off Grid Connection Types
Xantrex - XW series Chargers
Monday, 20 July 2009 at 20:30 GMT, by SiteAdmin
The latest generation components from Xantrex, the XW Solar Charge Controller is an MPPT controller designed to be used with 12 through 60 Volt battery systems.
Features include two or three-stage charging process, with manual equalization to maximize system performance and maintain expected battery life. Maximum Power Point Tracking (MPPT) to deliver the maximum available power from your PV array to the battery bank. Programmable auxiliary power output. Two-line LCD display to aid system configuration and system monitoring. Includes Battery Temp Sensor to provide automatically temperature-compensated battery charging. And Xanbus which enables the controller to communicate to other Xantrex XW components.
The XW Solar Charge Controller is designed to regulate PV input only, it is not designed to work with wind or hydro generators.
| Posted by SiteAdmin | Categories: General |
About Xantrex
Links to official Site
3 - Outdoor Solar Lighting
Monday, 20 July 2009 at 20:30 GMT, by SiteAdmin
| Categories | Model 1 | Model 2 | Model 3 |
|---|---|---|---|
| Garden Road Light | ISP-SC511 | ISP-SC514 | ISP-SC519 |
| Security Light | TBA | TBA | TBA |
| Street Area Light | ISP-ST616 | ISP-ST637 | ISP-ST618 |
Table1.0 Table of Outdoor Solar Lighting
4 - All in One - Charger, Inverter, power management
Rich Electric - CombiPlus - multi function Chargers & inverter
Tuesday, 30 Mar 2010 at 20:30 GMT, by SiteAdmin
The Ultimate Interactive DC to AC Inverter/Charger Power Management Control System idealy designed for Home, Boat, Caravan or RV.
Features includes
- intelligent Mains Grid Power and Generator power management control
- ATS Uninterrupted AC power transfer switch (UPS function)
- Two and Three phase AC output capability, for more demanding loads
- Power support feature: boosting the capacity of shore or generator power
- Power Shifting feature: avoids sudden loads on generator causing voltage spikes, an innovative feature of the Combi Range
- Four Stage Adaptive Charging System with dual bank battery charging, up to 120Amps & 4Amps starter battery
- Programmable Auxiliary relay contacts (x3)
- Solar CHarging Capacity up to a massive 600 Amps
- Remote Control Replica of main control panel with LCD display
- Power Stack capability: if need more power, just keep stacking for increased power upgrade
- Green power Smart: This feature is designed to conserve energy when connected to the main grid supply or AC generator
- Powerful Interactive Bi-Directional True Pure Sine Wave Inverter/Charger
The Combi-Plus Controller is a perfect all in one solution designed to regulate PV/generator input only, and it is a battery charger for DC/AC inverter function.
5 - Optimal Solar/Wind MPPT battery charger system

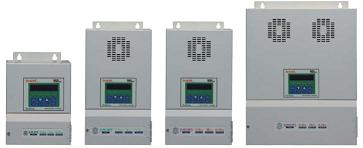

Rich Electric - SunStar MPPT- Solar/Wind charger system
Tuesday, 30 Mar 2010 at 20:30 GMT, by SiteAdmin
The Optimal Solar/Wind MPPT Battery Charger System.
Features includes
- Integrates Maximum Power Point Tracking (MPPT), batery charge management, state of charge information
- Continuous output power rating without de-rating at up to 50℃ ambient temperature
- Built-in Battery Energy Monitor tracks power production and consumption to calculate the energy remaining in battery state of charge (SOC) is displayed in percent full, Amp-hours, Watt-hours, and 90 days of energy-harvest history is stored in the solar charger
- Supports Flooded Lead Acid (FLA), GEL, Absorbed Glass Mat (AGM) and LiFePO4 batteries, 2/3/4-stage charging with adjustable set points for all parameters
- Wire the PV modules in series up to 112VDC normal (140VDC Max) for SS-80C Series and SS-50C series and 192VDC normal (240VDC Max) for SS-80CX Series and SS-160CX Series
- Easy stacking of up to 16 units in parallel for high currents
- Precision charging
The Combi-Plus Controller is a perfect all in one solution designed to regulate PV/generator input only, and it is a battery charger for DC/AC inverter function.
